Hardware That Works: Top Tilt-Turn Solutions

Why Tilt Turn Hardware is Essential for Modern Windows

Tilt turn hardware is the mechanism enabling European-style windows to operate in two ways: tilting inward from the top for secure ventilation or turning fully inward like a door for easy cleaning and full access.

Key Components of Tilt Turn Hardware:

• Handle and espagnolette system - Controls the multi-point locking mechanism
• Drive gear and corner drives - Transfer motion throughout the frame
• Scissor stays and hinges - Enable smooth tilt and turn operations
• Locking points with mushroom cams - Provide superior security
• Strikers and keepers - Secure the window when closed

Load Capacities:

• Standard systems: Up to 331 lbs (150 kg) for vinyl frames
• Heavy-duty systems: Up to 397 lbs (180 kg) for wood frames
• Large format capability: Windows up to 9'10" (3,000 mm) in height

Popular Manufacturers:

• Roto NX systems with TiltSafe technology
• Giesse C.H.I.C. and FUTURA 3D systems
• MACO Multi-Matic hardware

This dual functionality is perfect for homeowners seeking energy efficiency, improved security, and versatile ventilation. The multi-point locking system provides RC 2 security, and the tilt position offers safe, draft-free airflow.

I'm Wojciech Jagla from Windoorfull Imports Inc., where we specialize in distributing premium European-style windows featuring reliable German engineering and tilt turn hardware systems. We've seen how these mechanisms transform the functionality and security of modern homes.

Understanding the Mechanics: Key Components and System Types

At Windoorfull, we know the magic of a tilt and turn window lies in its hardware. This system allows a single window to tilt for ventilation or turn fully inward for access—a versatility that's a hallmark of European design and a key reason for its growing popularity in the USA. It’s all thanks to the clever design of the hardware.

The Core Components of a Tilt Turn Hardware System

Let's look at the essential parts that make this dual-action functionality possible:

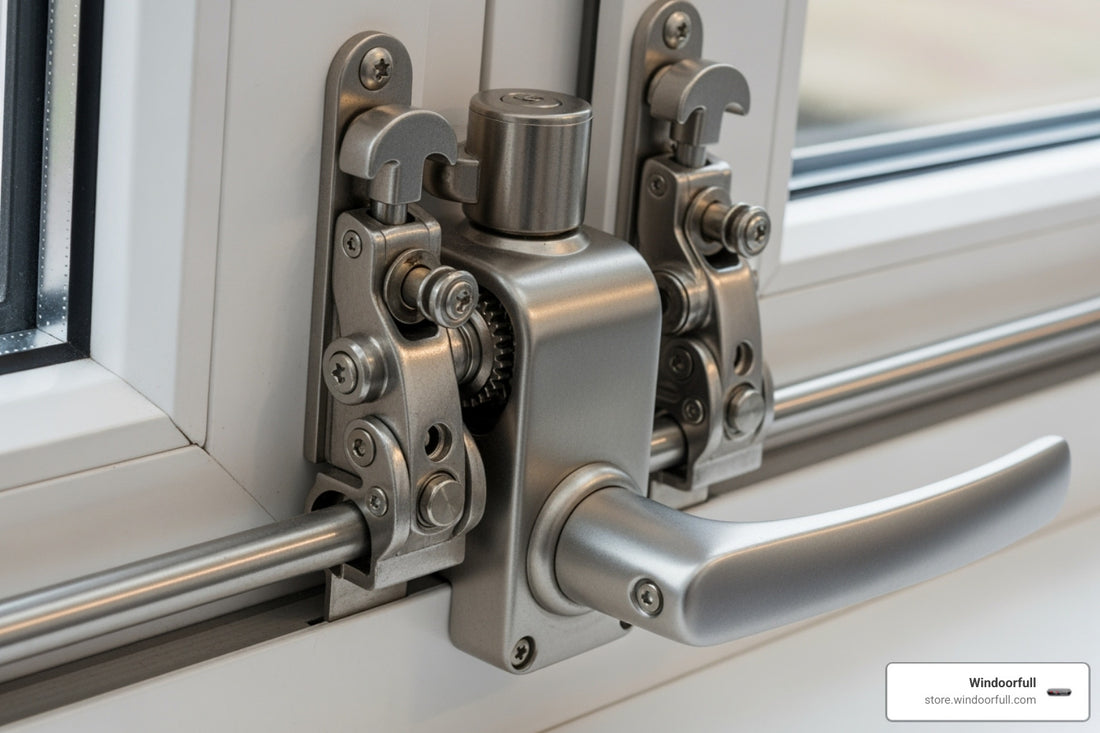

• Handle: The handle is your primary point of interaction. A simple turn engages the internal mechanism to select the window's opening mode, designed for intuitive, one-hand operation.
• Espagnolette and Drive Gear: Hidden in the frame, the espagnolette is a multi-point locking rod. The drive gear translates the handle's motion to move the espagnolette and its locking points (mushroom cams) into strikers on the frame, providing robust security.
• Corner Drives: Located at the sash corners, these link the espagnolette rods to ensure the multi-point locking system engages synchronously for smooth operation and optimal security.
• Scissor Stay: The scissor stay enables the "tilt" function. It supports the top of the sash, allowing it to open inward a few inches for secure, draft-free ventilation while the bottom remains attached.
• Hinges: Specialized hinges allow for both tilting and turning actions. They are engineered to handle significant weight, ensuring durability and smooth operation.
• Locking Points (Mushroom Cams): These mushroom-shaped pins on the espagnolette rod engage with strikers in the frame when locked. This creates a tight, secure seal that prevents forced entry. Some systems feature auto-regulating bolts that adjust to air gaps, further enhancing security.
• Strikers (Keepers): These are metal plates on the window frame that the mushroom cams lock into, pulling the sash tightly against the frame.

Together, these components create a system that is functional, secure, and energy-efficient. It’s this intricate dance of hardware that truly sets European-style tilt and turn windows apart. If you're curious to dive deeper, check out our article on What Makes Tilt-and-Turn Windows Unique?.

Concealed vs. Surface-Mounted Hardware

When it comes to aesthetics, the choice between concealed and surface-mounted tilt turn hardware makes a significant difference.

• Concealed Hardware: As the name suggests, concealed hardware is hidden within the window frame and sash, creating a sleek, minimalist design with uninterrupted sightlines. This is ideal for modern, uncluttered architectural styles. Systems like Giesse's C.H.I.C. and Roto's NX | C are designed for minimal profiles, allowing more daylight and better thermal performance. The robust engineering works behind the scenes, making it a great choice for projects where aesthetics are paramount.
• Surface-Mounted Hardware: In contrast, surface-mounted hardware has visible components on the window's interior. While less minimalist, modern systems are attractive and functional, often with stylish cover caps in various finishes. They can offer higher load capacities for very large or heavy windows, sometimes supporting sash weights up to 200 kg (tilt and turn) or 300 kg (turn-only). The choice depends on personal preference and window design. Both options provide a 180° opening angle for full access and easy cleaning.

The Functional Advantages: Security, Ventilation, and Efficiency

Choosing windows affects your comfort, safety, and energy bills. Tilt turn hardware is a game-changer, delivering security, smart ventilation, and energy efficiency. At Windoorfull, we've seen these advantages transform homes. The multi-point locking system secures the window around the entire frame, creating a strong barrier against intruders and eliminating energy-wasting air leaks. You get ease of use, sophisticated functionality, and home security without compromising fresh air. To learn more, check out our guide: Smooth Moves: A Guide to Tilt-Turn Window and Door Hardware.

Superior Ventilation without Compromising Safety

Tilt turn hardware cleverly overcomes a traditional window limitation: choosing between security and ventilation.

The tilt position is genius for daily life. The window opens inward from the top, creating a gap for draft-free airflow, perfect for kitchens and bathrooms. While tilted, the window remains locked on the sides and bottom. This tilt position security makes it extremely difficult for an intruder to get through the small top opening.

A night vent feature offers an even smaller opening, allowing you to sleep with fresh air circulating securely. For families, the tilt function provides significant child safety and pet safety, preventing accidental falls or escapes and offering peace of mind.

This smart approach to ventilation is just one reason why these windows are becoming the obvious choice for American homes. Learn more about why they're perfect for modern living in our article: The Smart Choice for Modern Homes: Why Tilt-and-Turn Windows Belong in Your USA Home.

Advanced Security and Building Code Compliance

Tilt turn hardware is engineered with security as a top priority, far exceeding traditional windows. The multi-point locking system is the foundation of this security, locking at several points around the perimeter for superior strength.

Anti-burglar mushroom cams are the stars. When locked, these specially shaped pins hook into corresponding strikers, creating a connection that's incredibly difficult to pry apart. Some systems feature auto-regulating versions for a consistently tight seal.

A tilt-first mechanism adds safety, especially for homes with children. The first handle turn only allows the window to tilt; a different action is needed to open it fully, preventing accidents. These systems achieve RC 2 security rating standards, a rigorous European classification for professional-grade burglary resistance.

In emergencies, the turn function provides a clear, unobstructed opening that meets fire egress requirements and building regulations, ensuring safety without entrapment. This security engineering meets strict European building regulations, often more demanding than others, ensuring proven, world-class protection.

Choosing the Right Tilt Turn Hardware: Materials and Load Capacity

Selecting the right tilt turn hardware is crucial for long-term performance. The right hardware ensures windows perform beautifully for decades. Modern systems handle impressive loads while maintaining smooth operation, supporting everything from standard windows to large panoramic designs safely and reliably.

Common Materials and Their Impact on Durability

Durability in tilt turn hardware comes down to its core materials. Get this right, and your window's performance is secured.

Steel is the heart of premium systems, used in espagnolette rods, gears, and locking mechanisms. This high-grade material withstands thousands of cycles, providing the strength for robust multi-point locking security.

Zinc alloys offer versatility for complex components like hinges and corner drives. Their excellent casting properties allow for intricate, reliable designs.

Aluminum is used for its lightweight strength, especially with aluminum window frames. Modern alloys ensure durability without adding excessive weight.

Corrosion-resistant finishes are critical. Premium systems achieve high ratings (Grade 4 or 5 per EN 1670-2008), representing the hardware's ability to withstand moisture and environmental challenges that would cause lesser systems to fail.

This protection means your windows will operate smoothly for years, maintaining their security and efficiency. For a deeper comparison of window performance, check out Which Window Wins? Tilt-and-Turn vs. Casement Explained.

Accommodating Large and Heavy Windows

As modern homes feature larger, heavier windows, the engineering of premium tilt turn hardware becomes essential.

The load-bearing capacity is impressive. Quality hardware supports sash weights up to 331 lbs for vinyl frames and up to 397 lbs for wood frames. Specialized systems can handle even more—up to 200 kg for tilt-turn and a remarkable 300 kg for turn-only configurations.

Heavy-duty hinges are precision-engineered to distribute weight evenly and maintain smooth operation. Their three-dimensional adjustment capability allows for fine-tuning during installation and over time as a home settles.

These systems enable truly large format windows, reaching widths of nearly 6 feet and heights approaching 10 feet—dimensions that are safe and reliable with modern tilt turn hardware. The key is matching hardware specifications to your window requirements to ensure safety and performance. Even the largest windows open and close with the same effortless motion, a mark of superior engineering.

Installation and Future Trends

The magic of tilt turn hardware comes alive during installation and through future innovations. Proper installation is key to exceptional performance, and we're always excited about the next wave of window technology. For a comprehensive look at these remarkable windows, check out our guide Beyond the Hinge: Everything You Need to Know About Tilt-Turn Windows.

Key Installation and Adjustment Considerations

Installing tilt turn hardware is a precision task where every component must work together for smooth, secure operation.

Frame material compatibility is a key strength. Modern hardware adapts to uPVC (our specialty at Windoorfull), wood, and aluminum frames. Systems from leading manufacturers work across various materials, offering flexibility in your design choices.

The 3D hinge adjustment feature simplifies installation, allowing for precise adjustments in height, lateral movement, and compression. This ensures a perfect fit and corrects minor alignment issues.

Mishandling devices are safety mechanisms that prevent improper operation, like trying to tilt and turn simultaneously. This protects the hardware from damage and prevents jams.

Proper gasket compression is vital. Quality tilt turn hardware ensures a consistent seal around the entire frame, which maximizes your energy efficiency, blocks drafts, and provides superior sound insulation.

Innovations and the Future of Tilt Turn Hardware

The future of tilt turn hardware is moving beyond mechanical systems to intelligent, connected solutions.

Smart home integration allows windows to operate automatically. For example, they can tilt open based on air quality sensor readings or lock with your security system. Systems like Roto's E-Tec Control already integrate with alarm networks, making windows part of your home's smart ecosystem.

Electronic sensors are becoming more sophisticated, moving beyond simple open/closed detection. Future sensors will monitor exact positions, detect tampering, and send status updates directly to your smartphone.

Automated operation is an emerging technology for large or hard-to-reach windows. It allows heavy sashes to be operated at the touch of a button, making them accessible to everyone.

Modular systems continue to evolve, reducing complexity and increasing reliability for manufacturers and homeowners alike. This also means easier future upgrades and simpler repairs.

Improved security features keep advancing, with refinements to anti-burglar components and deeper integration with home security networks. We stay connected with these developments at industry events like BAU trade fairs to ensure our products remain at technology's leading edge.

Frequently Asked Questions about Tilt Turn Hardware

At Windoorfull, we often get questions about tilt turn hardware. Here are answers to the most common ones, explaining how these ingenious systems work.

How does tilt turn hardware improve window security?

Tilt turn hardware offers impressive security improvements. Unlike traditional windows with a single latch, these systems feature a multi-point locking system that secures the window around the entire frame, much like multiple deadbolts on a door.

The system's steel mushroom cams are a key feature. When locked, these mushroom-shaped pins hook into reinforced steel strikers, creating an anti-jemmy design that makes prying the window open extremely difficult. This hardware often meets rigorous RC 2 European security standards.

Anti-lift pins and reinforced keepers prevent the sash from being lifted out of the frame. Even in the tilt position, the window remains locked at the bottom and sides, with some systems like Roto NX TiltSafe maintaining an RC 2 security rating while ventilating.

Can tilt turn hardware be fitted to any window?

Unfortunately, tilt turn hardware cannot be fitted to just any window. This hardware requires a specific "Euro groove"—a channel built into the window profile during manufacturing. It is designed for modern uPVC, wood, and aluminum frames that have this feature. Without the groove, proper installation is impossible.

Retrofitting existing windows is generally impractical and more expensive than a full window replacement. Additionally, this hardware is designed exclusively for inward-opening windows and will not work on outward-opening models.

This is why we always recommend a professional assessment. Often, starting fresh with purpose-built European-style windows provides the best performance and value.

Is tilt turn hardware difficult to maintain?

Great news: tilt turn hardware is designed for low maintenance.

The turn function is a major benefit. It allows the sash to open fully inward, so you can clean both sides of the glass safely from inside your home. This also provides easy access to the hardware for any adjustments.

The only regular maintenance required is periodic lubrication. Applying a light silicone spray or grease to the moving parts once or twice a year keeps the mechanism operating smoothly and extends its life.

The 3D hinge adjustment feature allows a professional to easily fine-tune the sash alignment if needed due to house settling, though this is rarely required.

Thanks to durable materials like steel and zinc alloys with advanced corrosion-resistant finishes (often Grade 4 or 5), the hardware is built to withstand weather and daily use for decades with minimal upkeep.

Conclusion: Making the Smart Choice for Your Windows

Tilt turn hardware is more than a clever mechanism; it's a fundamental upgrade to how your home breathes, stays secure, and performs. With superior security from multi-point locking and mushroom cams, your home is safer. Tight seals provide natural energy efficiency. The versatility of a single window that tilts for ventilation and turns for full access is where the magic lies.

The modern aesthetics, available with concealed or surface-mounted hardware, offer a sophisticated European look. Plus, the ability to clean your windows from inside simplifies maintenance.

At Windoorfull, we see how European engineering transforms American homes. By importing these authentic systems at American-friendly prices, we provide decades of refined engineering perfected in the demanding European market.

The durability is proven. Corrosion-resistant finishes and robust steel components ensure years of smooth, reliable operation and peace of mind in any weather.

These windows fit seamlessly into modern life: safety features protect your family, security features protect your home, and energy efficiency protects your wallet. It's a win across the board.
